GliderCG
Based on the original development of Olav Kalhovd, GliderCG is a center of gravity (CG) digital balance device for RC planes able to provide the exact information of where the CG is located on the sailplane via a display which also provides information of the sailplane's total weight.
Simply place the sailplane on the scale and obtain it's CG without trying to balance it on your fingers or mark the wings to supporting them on precarious structures.

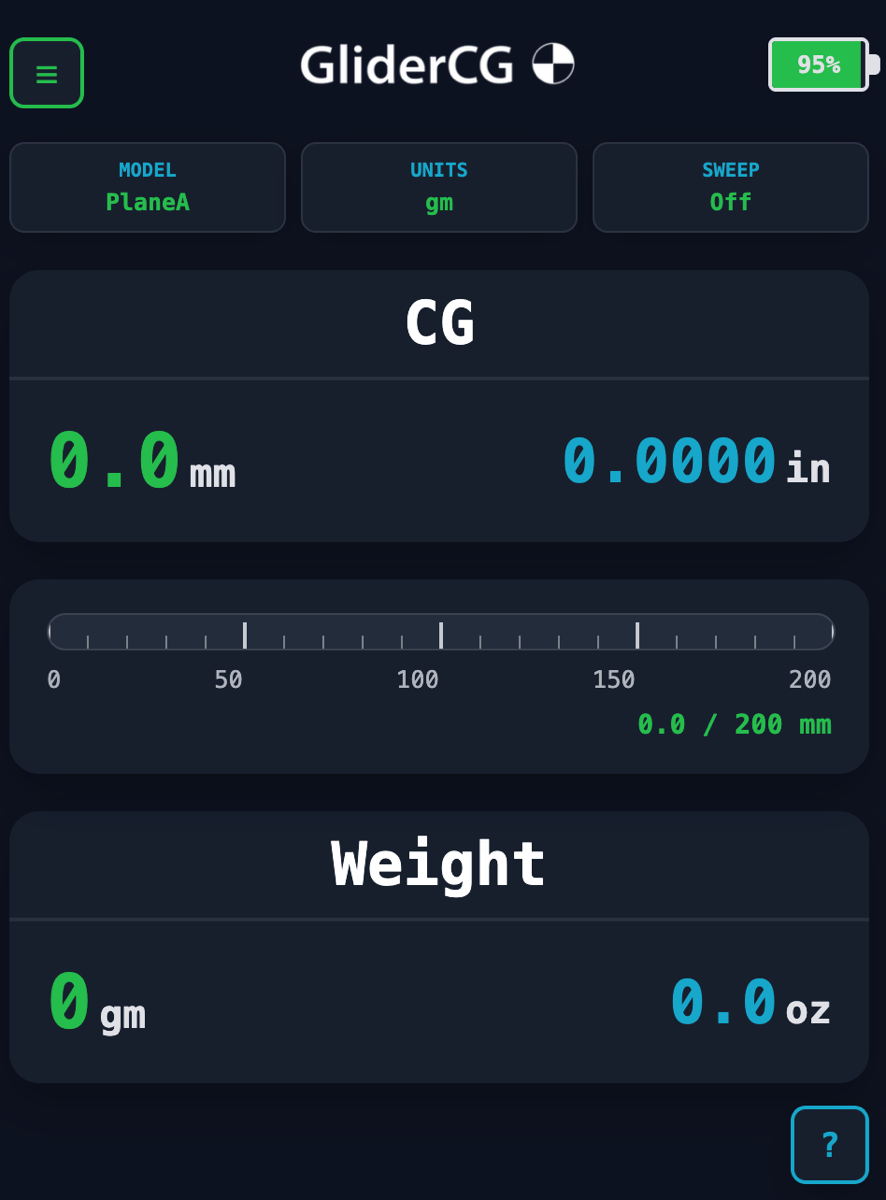

Once the sailplane is placed on the scale, you can vary the CG by moving e.g. the battery and GliderCG will automatically inform you of the new CG in real-time. Easy and simple!
The GliderCG family was born with the aim of being able to transfer the concept of digital measurement of the CG to the different types of aircraft and radio control gliders. For this reason there is a specific device for each of the different popular disciplines: GliderCG F3K/DLG, GliderCG Standard, GliderCG Plus and GliderCG Scale.
GliderCG is constantly being improved and has evolved over time to provide more features and enhancements. Today's GliderCG devices are much more modern and advanced than the initial ones produced in 2018.
Based on the original development of Olav Kalhovd, GliderCG is a center of gravity (CG) digital balance device for RC planes able to provide the exact information of where the CG is located on the sailplane via a display which also provides information of the sailplane's total weight.
Simply place the sailplane on the scale and obtain it's CG without trying to balance it on your fingers or mark the wings to supporting them on precarious structures.
Once the sailplane is placed on the scale, you can vary the CG by moving e.g. the battery and GliderCG will automatically inform you of the new CG in real-time. Easy and simple!
The GliderCG family was born with the aim of being able to transfer the concept of digital measurement of the CG to the different types of aircraft and radio control gliders. For this reason there is a specific device for each of the different popular disciplines: GliderCG F3K/DLG, GliderCG Standard, GliderCG Plus and GliderCG Scale.
GliderCG is constantly being improved and has evolved over time to provide more features and enhancements. Today's GliderCG devices are much more modern and advanced than the initial ones produced in 2018.
GliderCG F3K/DLG
GliderCG F3K is our version specifically designed to fit small & narrow DLG wings.
FEATURES

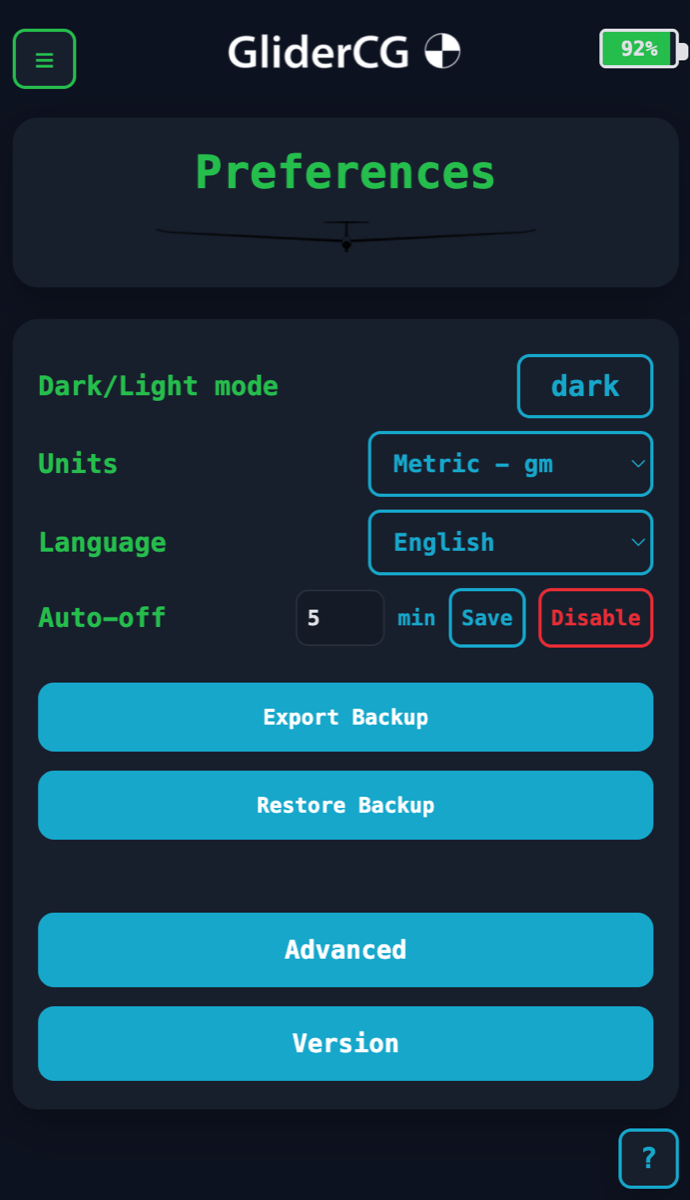

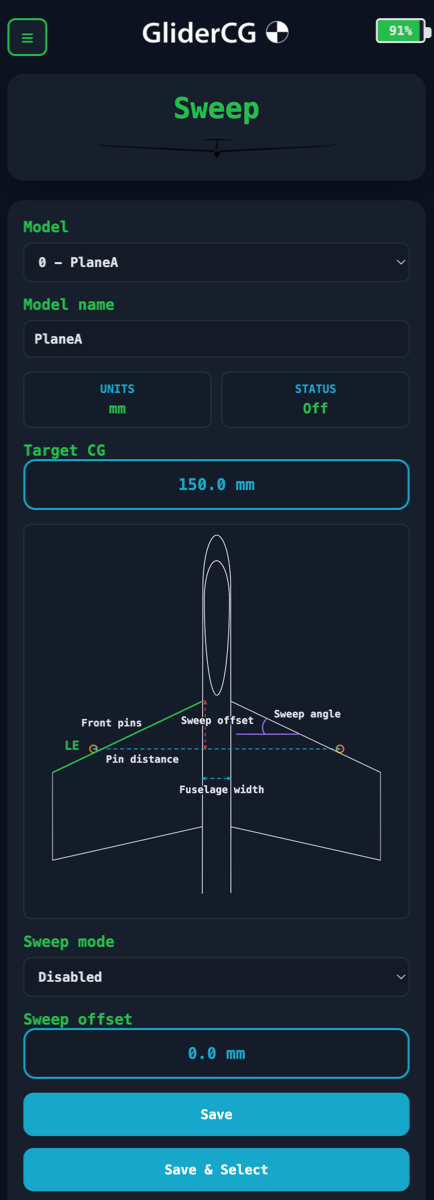

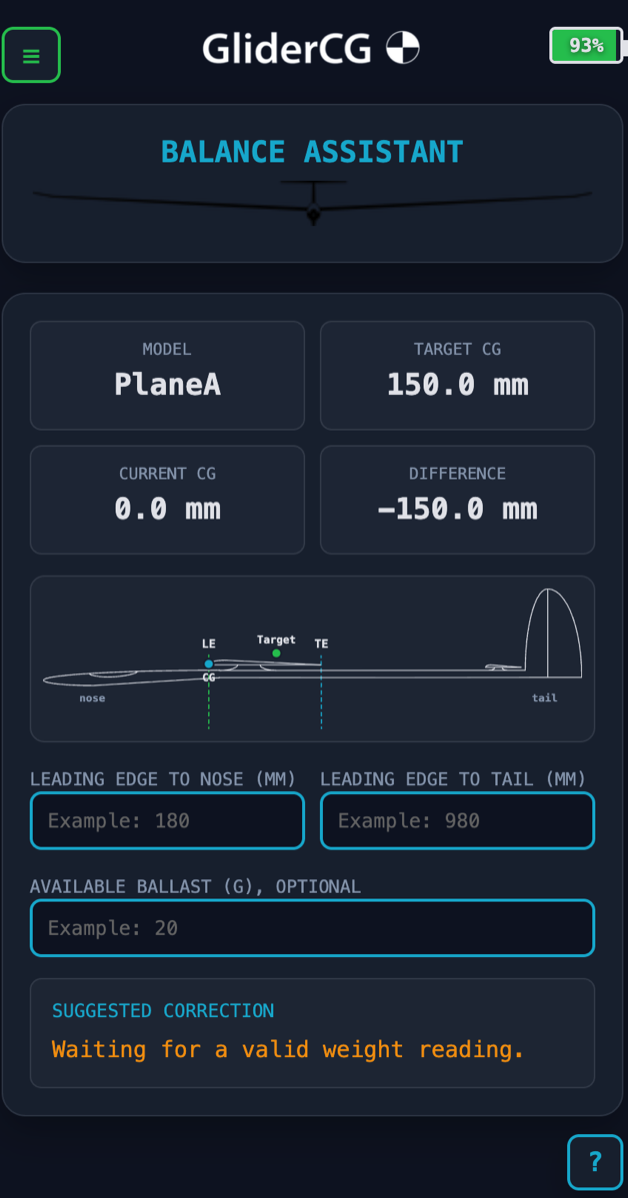

Additionally, this unit provides the ability to view data through the WiFi connection. The WiFi connection also provides the option to save the CG configuration of different models, review historical readings and comparisons.
SPECIFICATIONS
DOCUMENTATION
PRICE
Purchase
FEATURES
- New, easy-to-read font
- WiFi + OLED LCD display
- Battery level indicator (WiFi interface)
- Rechargeable battery
Additionally, this unit provides the ability to view data through the WiFi connection. The WiFi connection also provides the option to save the CG configuration of different models, review historical readings and comparisons.
SPECIFICATIONS
- Maximum fuselage size: 1.6 in / 40 mm
- Maximum fuselage height: 1.9 in / 50 mm
- Maximum weight: 2.2 lbs / 1 kg
- Leading edge to rear support pad distance: 3.75 in / 96 mm
- Power: 500mAh rechargeable Lithium battery (providing ~3 hours of continuous operation)
- Charge port: USB-C
- Charge time: ~1 Hour
DOCUMENTATION
PRICE
- $189 - Free shipping*
Purchase
GliderCG Plus
GliderCG Plus is a special GliderCG version designed for F5G and big gliders up to 33lbs.
FEATURES
GliderCG Plus includes a set of smaller wing adapters to allow the measurement of planes with a narrow wing chord (i.e. DLG/F3K models).
FEATURES
- Stronger and more robust arms
- New, easy-to-read font
- Low-battery alert at start
- Sliding lid access to the battery compartment
- Greater stability
GliderCG Plus includes a set of smaller wing adapters to allow the measurement of planes with a narrow wing chord (i.e. DLG/F3K models).
SPECIFICATIONS
DOCUMENTATION
PRICE
Purchase
- Maximum weight: 33 lbs / 15 kg
- Maximum fuselage width: 6.3 in / 160 mm
- Maximum fuselage height (from bottom fuselage to wing bottom): 5.75 in / 146 mm
- Leading edge to rear support pad distance: 6.9 in / 176 mm
- Power: 9V DC (6LR61)
DOCUMENTATION
PRICE
- $269 - Free shipping*
Purchase
GliderCG Standard v3
Based in the GliderCG v2 platform and with our constant desire for improvement, we have worked on all aspects of the device, both hardware and software, to offer an improved GliderCG Standard v3 in a compact form factor for easy transport and storage when not in use.
This GliderCG Standard v3 is designed for F5J, F3B, and F3F models.
FEATURES
Additionally, this unit provides the ability to view data through the WiFi connection. The WiFi connection also provides the option to save the CG configuration of different models to review historical readings and the ability to compare readings after e.g. repairs, etc.
GliderCG Standard v3 includes a set of smaller wing adapters to allow the measurement of planes with a narrow wing chord (i.e. DLG/F3K models).
This GliderCG Standard v3 is designed for F5J, F3B, and F3F models.
FEATURES
- Folding arms with solid locking mechanism
- Battery level indicator (WiFi Interface)
- Sliding lid access to the battery compartment
- Greater stability
- WiFi + OLED LCD display
Additionally, this unit provides the ability to view data through the WiFi connection. The WiFi connection also provides the option to save the CG configuration of different models to review historical readings and the ability to compare readings after e.g. repairs, etc.
GliderCG Standard v3 includes a set of smaller wing adapters to allow the measurement of planes with a narrow wing chord (i.e. DLG/F3K models).
SPECIFICATIONS
DOCUMENTATION
PRICE
Purchase
- Maximum weight: 17.6 lbs / 8 kg
- Maximum fuselage width: 3.4 in
- Maximum fuselage height (from bottom fuselage to wing bottom): 3.4 in / 86 mm
- Leading edge to rear support pad distance: 5.9 in / 150 mm
- Power: 9V DC (6LR61)
DOCUMENTATION
PRICE
- $229 - Free shipping*
Purchase
